Product Overview
PVC Color Masterbatches is developed for PVC-based products that require uniform coloration, stable color and reliable processing performance. Model 30M is formulated with a PVC-compatible carrier system and can be customized according to customer color samples, target shades and end-product requirements.
The material is suitable for applications such as wire and cable, flexible and rigid PVC products, profiles, tubing, sheets, molded parts and other colored PVC products. Color formulation should be confirmed against the actual PVC resin system, plasticizer content, processing route and end-use requirements.
Quick Product Summary
|
Item |
Details |
|
Model |
30M |
|
Carrier / Base Compatibility |
PVC |
|
Product Type |
Color masterbatch for PVC applications |
|
Color Matching |
Customized according to sample or target shade |
|
Appearance |

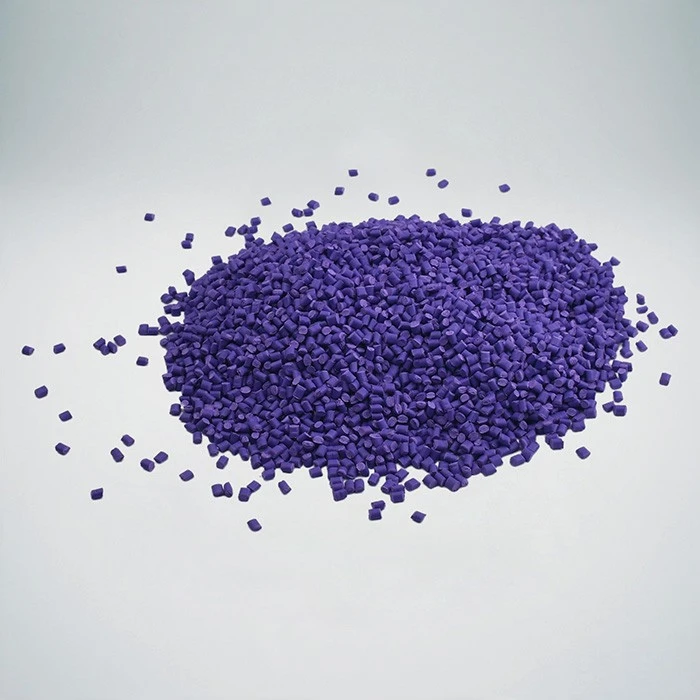

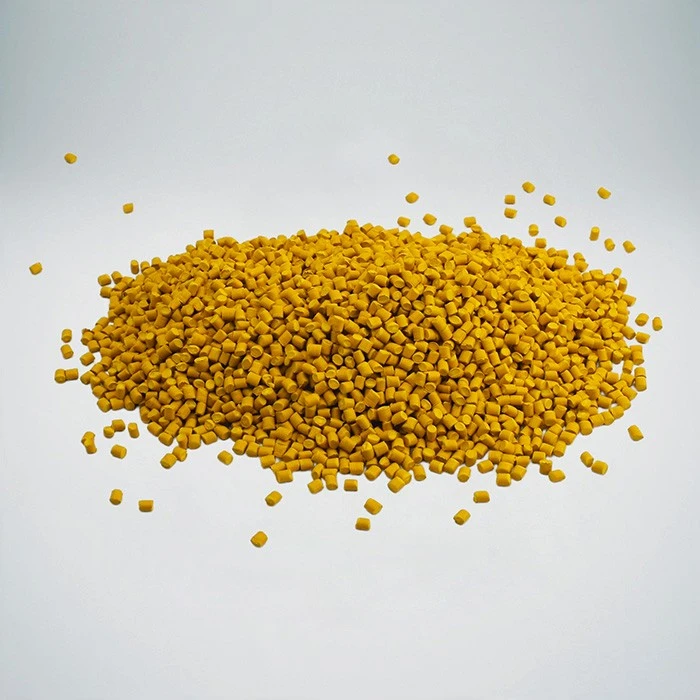

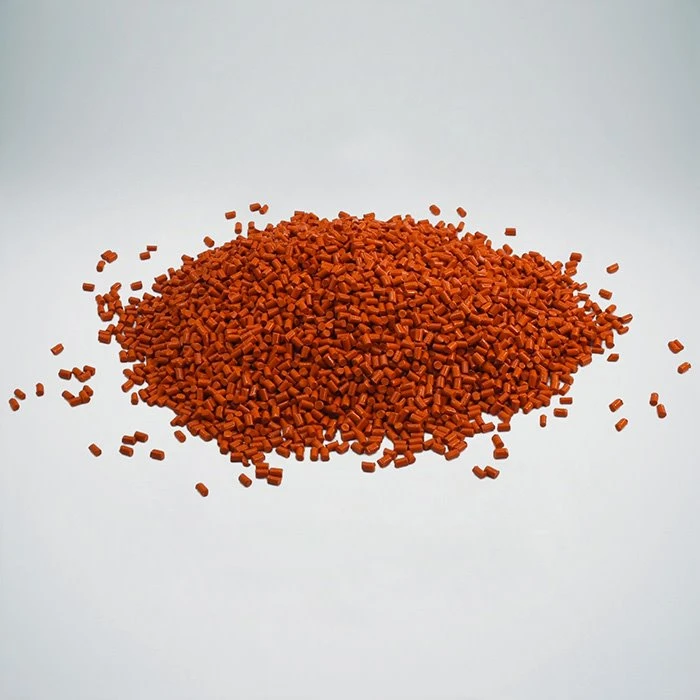

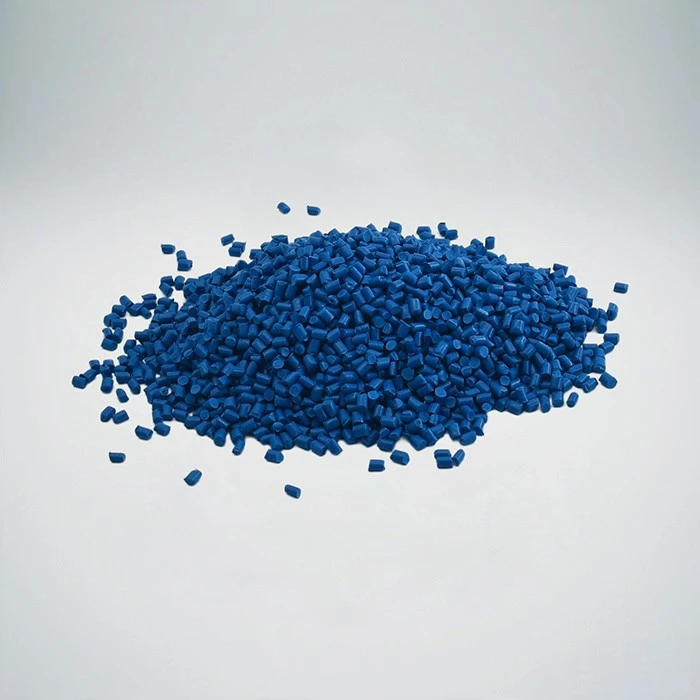

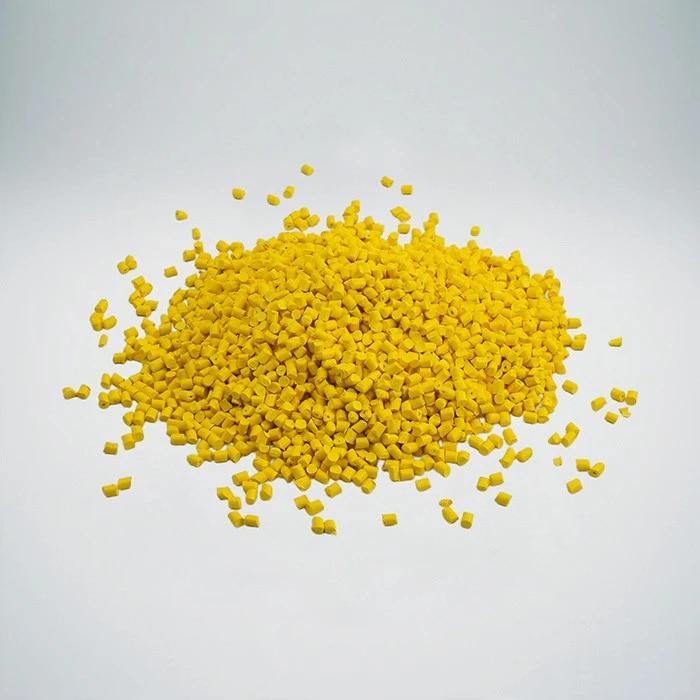

Cylindrical pellets, approx. Φ2.5 × 3 mm |
|
Main Performance |
Good dispersion • stable color • migration resistance • weather resistance |
Key Advantages
- PVC-compatible carrier system for improved formulation compatibility
- Customized color development based on customer samples or color references
- Good pigment dispersion for more uniform surface appearance
- Stable color control for repeat production
- Suitable for different rigid and flexible PVC processing routes
Typical Applications
- PVC wire and cable compounds
- PVC profiles
- PVC tubing and hoses
- Sheets and films
- Molded PVC parts
- Flexible PVC products
- Rigid PVC products
Application & Color-Matching Guidance
PVC Formulation Compatibility
PVC formulations can vary significantly in resin grade, plasticizer content, fillers, stabilizers and processing temperature. For this reason, color matching should be carried out using the customer's actual base formulation whenever possible.
Information Needed for Color Development
- PVC type and formulation: rigid PVC or flexible PVC
- Target color sample, Pantone / RAL reference or approved color standard
- Processing method: extrusion, injection molding, calendaring or other
- Typical processing temperature range
- Required color tolerance and surface appearance
Typical Performance Focus
|
Performance Area |
Typical Positioning |
Why It Matters |
|
Dispersion |
Good dispersion |
Supports uniform color and reduced streaking |
|
Weather Resistance |
Grade 5-8 |
Supports applications exposed to light and weathering |
|
Migration Resistance |
Grade 4-5 |
Helps control color transfer in PVC systems |
|
Color Difference |
ΔE ≤ 1.0 |
Supports repeatable color matching |
|
Moisture Control |
≤ 0.15% |
Supports stable processing and surface quality |
Color Approval Process
- Confirm the PVC formulation and processing method.
- Develop the initial color sample against the target shade.
- Evaluate color difference and visual appearance on the actual PVC product.
- Adjust formulation if required for opacity, brightness or migration behavior.
- Approve and retain the final sample as the production color standard.
Recommended Extrusion Process Temperature
|
Test Item |
30M Typical Specification |
|
Appearance |
Cylindrical pellets |
|
Acid & Alkali Resistance |
Grade 3-5 |
|
Weather Resistance |
Grade 5-8 |
|
Migration Resistance |
Grade 4-5 |
|
Color Difference |
ΔE ≤ 1.0 |
|
Moisture Content |
≤ 0.15% |
|
Environmental Compliance |
According to applicable industry requirements |
Technical note: The supplied catalogue provides general masterbatch quality indicators rather than a separate detailed test method table for model 30M. Final suitability should therefore be confirmed in the customer's actual PVC formulation and processing conditions.
Sample & Customization Support
Samples can be provided for color matching and application trials. For faster evaluation, please provide the PVC formulation type, target shade, application, processing method, temperature range and any special requirements for migration, weathering or compliance.
FAQ
1. What is model 30M used for?
It is intended for coloring PVC-based products, including cable compounds, profiles, tubing, sheets and molded PVC parts.
2. Is 30M suitable for both rigid and flexible PVC?
It can be evaluated for both, but the color formulation should be matched to the actual PVC resin, plasticizer level and additives.
3. Can custom colors be supplied?
Yes. Colors can be matched according to customer samples, Pantone / RAL references or other approved color standards.
4. What information is needed for accurate PVC color matching?
The PVC formulation, rigid/flexible type, target shade, processing method and temperature range are the most important inputs.
5. Can the same masterbatch formulation be used for every PVC product?
Not necessarily. PVC formulations vary widely, so the color recipe should be confirmed against the actual resin and additive system.
6. Can samples be supplied before production?
Yes. Samples can be supplied for color matching, dispersion checks and end-product trials before final approval.
