Item |
Content |
|
Model |
EPC6926 |
|
Product Type |
B1-Class Flame-Retardant LSZH Communication Cable Compound |
|
Material Type |
Thermoplastic Low Smoke Zero Halogen Flame-Retardant Polyolefin |
|
Application |
Thin-Wall Communication Cables / Communication Cable Sheathing |
|
Key Performance |
Excellent Flame Retardancy • Low Heat Release • Low Heat Release Rate • LSZH |
|
Processing |
Thermoplastic Extrusion • No Irradiation Required |
|
Halogen Content |
0 PPM |
|
Color |

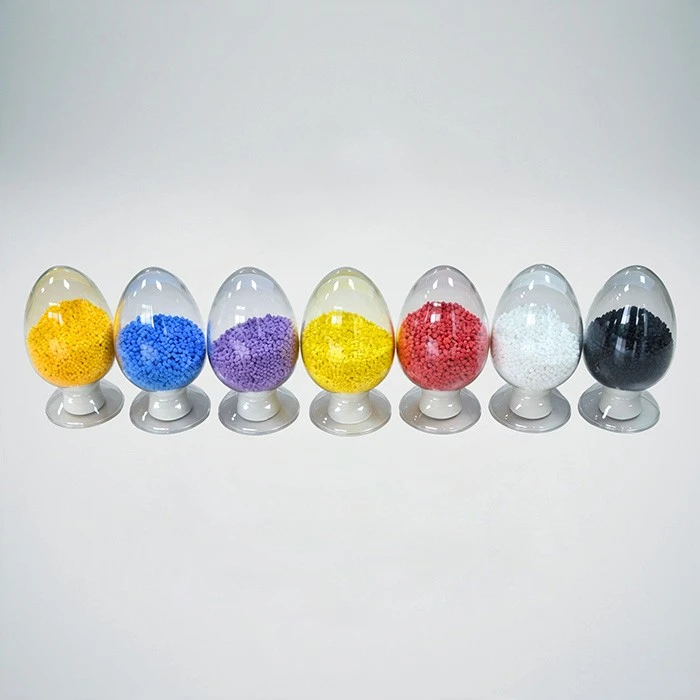

Colorable |
Product Overview
EPC6926 is a B1-class flame-retardant low smoke zero halogen cable compound developed for communication cables, especially thin-wall communication cable constructions. The material provides excellent flame retardancy while maintaining low heat release and a low heat release rate, supporting B1-class fire-performance cable designs where reduced smoke and zero-halogen characteristics are required.
As a thermoplastic HFFR communication cable material, EPC6926 can be used for low-smoke halogen-free communication cable sheathing, data and signal cable outer layers, and other thin-wall cable applications requiring strong flame-retardant performance. Its combination of LSZH characteristics, an oxygen index of 48% and controlled smoke performance makes it suitable for fire-safety-oriented communication cable constructions subject to final cable evaluation.
Key Features
- B1-Class Flame-Retardant Communication Cable Material
- Designed for Thin-Wall Communication Cables
- Low Heat Release & Low Heat Release Rate
- Low Smoke Zero Halogen / HFFR
- Oxygen Index: 48%
- Halogen Content: 0 PPM
- Thermoplastic Processing without Irradiation
Technical Data Sheet
|
Test Item |
EPC6926 |
Test Method |
|
Density, g/cm³ |
1.48 |
ISO 1183-1 |
|
Melt Index, g/10min |
2.1 |
ISO 1133 (b) |
|
Tensile Strength, MPa |
11.6 |
IEC 60811-1-1 |
|
Elongation at Break, % |
180 |
IEC 60811-1-1 |
|
Aging Test, °C×h |
100×168 |
IEC 60811-1-2 |
|
Tensile Strength after Aging, MPa |
13.2 |
IEC 60811-1-2 |
|
Elongation after Aging, % |
151 |
IEC 60811-1-2 |
|
Oxygen Index, % |
48 |
ISO 4589-2 |
|
Smoke Density - Flaming |
97 |
ASTM E-662 |
|
Smoke Density - Nonflaming |
260 |
ASTM E-662 |
|
Hardness, Shore A |
97 |
ASTM D2240 |
|
High-Temperature Pressure Test, °C×h |
90×4 |
IEC 60811-3-1 |
|
Thermal Deformation, % |
20 |
IEC 60811-3-1 |
|
Low-Temperature Impact @ -25°C |
Pass |
IEC 60811-1-4 |
|
Thermal Shock @ 130°C |
Pass |
IEC 60811-3-1 |
|
Halogen Content, PPM |
0 |
IEC 60754 |
|
pH (min) |
6.2 |
IEC 60754 |
|
Conductivity (max), μS/mm |
2.8 |
IEC 60754 |
|
Volume Resistivity, Ω·m |
1.3×10¹² |
IEC 60093 |
Recommended Extrusion Process Temperature
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Zone 5 |
Neck |
Head |
Mould |
|
Temperature |
100°C |
130°C |
140°C |
145°C |
150°C |
155°C |
160°C |
165°C |
EPC6926 can be processed on conventional cable extrusion equipment. A low-compression-ratio screw and head are recommended, with a compression ratio of approximately 1:1–1:2. Keep the melt temperature below 165°C and not above 175°C.
Adjust the extrusion conditions according to cable structure, equipment configuration, screw design and actual melt condition.
For special extrusion equipment, thin-wall communication cable structures or processing conditions, please contact our technical team for processing guidance.
Final processing parameters should be confirmed through production trials under the customer's actual extrusion conditions.
OEM & Customization
- Customized Formulations
- OEM Manufacturing
- Color Matching
- Technical Support
- Small Batch
- Fast Sampling
- Free Samples
FAQ
1. What is EPC6926?
EPC6926 is a thermoplastic B1-class flame-retardant low smoke zero halogen cable compound developed for communication cables, particularly thin-wall communication cable applications.
2. What is the main application of EPC6926?
The supplied catalogue positions EPC6926 for thin-wall communication cables requiring excellent flame retardancy together with low heat release and a low heat release rate.
3. Is EPC6926 an LSZH / HFFR material?
Yes. The supplied data lists halogen content at 0 PPM, supporting its low smoke zero halogen / halogen-free flame-retardant positioning.
4. What flame-retardant data is available?
The supplied technical data lists an oxygen index of 48%, with smoke density values of 97 by the flaming method and 260 by the nonflaming method.
5. What mechanical properties does EPC6926 provide?
The supplied data lists 11.6 MPa tensile strength and 180% elongation at break.
6. Does EPC6926 require irradiation cross-linking?
No. EPC6926 is a thermoplastic cable compound and does not require an irradiation cross-linking step.
7. What low-temperature performance is reported?
The supplied technical data reports a pass in the -25°C low-temperature impact test.
8. What is the recommended extrusion temperature profile?
Zone 1: 100°C; Zone 2: 130°C; Zone 3: 140°C; Zone 4: 145°C; Zone 5: 150°C; Neck: 155°C; Head: 160°C; Mould: 165°C.
9. What halogen-free data is reported?
The supplied data lists 0 PPM halogen, pH 6.2 and conductivity of 2.8 μS/mm according to IEC 60754.
10. Can customized formulations and samples be provided?
Yes. Formulation support, color matching, technical guidance and samples can be provided according to communication cable requirements.
