Item |
Content |
|
Model |
EPC9052 |
|
Product Type |
105°C SHF2 LSZH Marine Cable Compound |
|
Cross-Linking Method |
Electron Beam / Irradiation Cross-Linking |
|
Recommended Irradiation Dose |
10–12 MRad |
|
Standard / Grade |
IEC 60092-359 • SHF2 |
|
Application |
Marine / Shipboard Cable Constructions |
|
Key Features |
105°C • SHF2 • LSZH / HFFR • Oil-Immersion Data • Crosslinkable |
|
Marine Positioning |
Dedicated shipboard cable grade; finished-cable validation required |
Product Overview
EPC9052 developed for shipboard cable constructions requiring low-smoke, zero-halogen and flame-retardant performance. The supplied marine-cable catalogue positions EPC9052 for IEC 60092-359 SHF2 requirements, giving this page a dedicated marine and shipboard application focus.
After extrusion, EPC9052 is crosslinked by electron-beam irradiation. In addition to its SHF2 positioning, the supplied data includes ASTM No. 2 oil-immersion performance, low-temperature impact, thermal-shock, hot-set and electrical-resistivity results. The recommended irradiation dose is 10–12 MRad.
Key Features
- IEC 60092-359 SHF2 Marine Cable Grade
- 105°C Irradiation-Crosslinked HFFR Compound
- Low Smoke Zero Halogen
- ASTM No. 2 Oil-Immersion Data
- Low-Temperature Impact @ -25°C: Pass
- Thermal Shock @ 150°C: Pass
- Shipboard Cable Material for SHF2 Constructions
Technical Data Sheet
|
Test Item |
EPC9052 |
|
Density, g/cm³ |
1.49 |
|
Melt Index, g/10min |
5.9 |
|
Tensile Strength, MPa |
12.1 |
|
Elongation at Break, % |
230 |
|
Aging Test, °C×h |
120×168 |
|
Tensile Strength after Aging, MPa |
14.0 |
|
Elongation after Aging, % |
200 |
|
Oxygen Index, % |
34 |
|
Smoke Density - Flaming |
66 |
|
Smoke Density - Nonflaming |
198 |
|
Toxicity Index |
1 |
|
Hardness, SHA |
95 |
|
Low Temperature Impact @ -25°C |
Pass |
|
Thermal Shock @ 150°C |
Pass |
|
Halogen Content, PPM |
0 |
|
pH (min) |
6.0 |
|
Conductivity (max), μS/mm |
1.2 |
|
Volume Resistivity, Ω·m |
1.5×10¹² |
|
Hot Set @ 200°C × 15min, % |
40 |
|
Permanent Deformation, % |
5 |
Marine Oil-Resistance Data
|
Oil Test Item |
Typical Value |
|
ASTM No. 2 Oil Immersion |
100°C × 24 h |
|
Tensile Strength after Oil Immersion |
9.6 MPa |
|
Elongation after Oil Immersion |
185% |
Recommended Extrusion Process Temperature
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Zone 5 |
Neck |
Head |
Mould |
|
Temperature |
100°C |
110°C |
125°C |
135°C |
150°C |
155°C |
160°C |
165°C |
EPC9052 can be processed on conventional PVC/PE cable extrusion equipment. After extrusion, electron-beam irradiation is applied to obtain the required cross-linked structure for marine cable evaluation.
Keep the melt temperature below 165°C and do not exceed 175°C during extrusion.
A low-compression screw and head are recommended, with a compression ratio of approximately 1:1–1:2.
For special shipboard cable constructions, extrusion equipment or irradiation conditions, please contact our technical team for processing and cross-linking guidance.
OEM & Customization
- Customized Formulations
- OEM Manufacturing

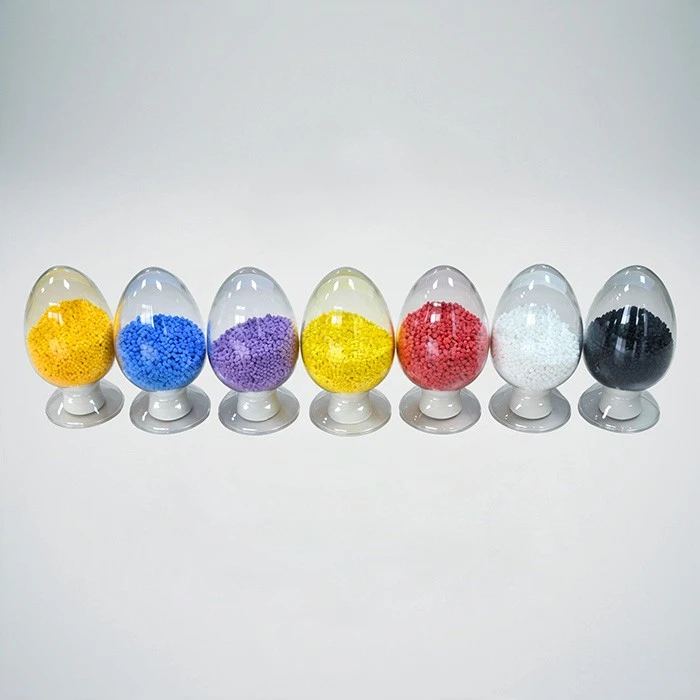

- Color Matching
- Technical Support
- Small Batch
- Fast Sampling
- Free Samples
FAQ
1. What is EPC9052 for marine cables?
EPC9052 is a 105°C irradiation-crosslinked LSZH / HFFR compound positioned for shipboard cable constructions targeting IEC 60092-359 SHF2 requirements.
2. Which marine standard is EPC9052 positioned for?
According to the supplied marine-cable catalogue, EPC9052 is positioned for IEC 60092-359 SHF2 product requirements.
3. Is EPC9052 a low-smoke zero-halogen marine cable material?
Yes. The supplied data lists halogen content of 0 ppm and includes smoke-density and toxicity-index results for the marine grade.
4. Does EPC9052 include oil-resistance data?
Yes. The supplied table lists ASTM No. 2 oil immersion at 100°C × 24 h, followed by typical tensile strength of 9.6 MPa and elongation of 185%.
5. How is EPC9052 crosslinked?
The material is extruded first and then crosslinked by electron-beam irradiation.
6. What irradiation dose is recommended?
The recommended irradiation dose is 10–12 MRad.
7. How does EPC9052 perform after heat aging?
After aging at 120°C for 168 hours, the supplied data lists typical tensile strength of 14.0 MPa and elongation at break of 200%.
8. What low-temperature performance is listed?
The supplied marine data lists low-temperature impact at -25°C as Pass.
9. Can customized colors and formulations be supplied?
Yes. Color matching and formulation adjustment can be evaluated according to shipboard cable construction and performance requirements.
10. Can free samples be provided?
Yes. Samples can be provided for extrusion, irradiation and finished marine-cable evaluation.
