Item |
Content |
|
Model |
EPC9555-FM |
|
Product Type |
Mildew-Resistant Irradiation Cross-Linked LSZH Marine Cable Compound |
|
Material Type |
Halogen-Free Flame-Retardant Cross-Linked Polyolefin Compound |
|
Recommended Irradiation Dose |
10–12 MRad |
|
Standard / Grade |
GJB 1916-94 Sheathing Application • GJB 150.10A Mildew Resistance |
|
Application |
Military Shipboard, Naval Vessel & Marine Cable Applications |
|
Key Features |
Mildew Resistant • Oil Resistant • LSZH • HFFR • Irradiation Cross-Linked |
|
Compliance |
RoHS • REACH • HF • ISO 9001 • IATF 16949 |
Product Overview
EPC9555-FM is a mildew-resistant irradiation cross-linked low smoke zero halogen flame-retardant cable compound developed for military shipboard and naval vessel cable applications. It is designed to meet the sheathing material requirements of GJB 1916-94 and the mildew-resistance requirements of GJB 150.10A, while providing oil resistance and halogen-free fire-safety performance.
As an electron-beam cross-linked HFFR polyolefin material, EPC9555-FM combines mechanical durability, ASTM No. 2 oil resistance and resistance to fungal growth for demanding marine environments. The irradiated XLPO compound is suitable for naval cable jackets, military marine cable sheathing and vessel wiring systems where low smoke, zero halogen, oil-resistant and mildew-resistant performance are required.
Key Features
- GJB 1916-94 Military Marine Cable Sheathing
- GJB 150.10A Mildew Resistance
- Mildew Grade 0
- ASTM No. 2 Oil Resistant
- Irradiation Cross-Linked XLPO / HFFR
- Low Smoke Zero Halogen
- Naval Vessel & Shipboard Cable Application
Technical Data Sheet
|
Test Item |
EPC9555-FM |
|
Density, g/cm³ |
1.50 |
|
Melt Index, g/10min |
5.1 |
|
Tensile Strength, MPa |
11.1 |
|
Elongation at Break, % |
230 |
|
Aging Test, °C×h |
136×168 |
|
Tensile Strength after Aging, MPa |
13.0 |
|
Elongation after Aging, % |
185 |
|
Tear Strength, N/mm |
7.5 |
|
Oxygen Index, % |
32 |
|
Toxicity Index |
2 |
|
Smoke Index |
24 |
|
Hardness, Shore A |
95 |
|
Low-Temperature Impact @ -25°C |
Pass |
|
Thermal Shock @ 150°C |
Pass |
|
Halogen Content, PPM |
0 |
|
pH (min) |
6.1 |
|
Conductivity (max), μS/mm |
1.0 |
|
Volume Resistivity, Ω·m |
2.1×10¹² |
|
Hot Set @ 200°C × 15min, % |
35 |
|
Permanent Deformation, % |
5 |
|
ASTM No. 2 Oil Immersion, °C×h |
121×18 |
|
Tensile Strength after Oil Immersion, MPa |
9.0 |
|
Elongation after Oil Immersion, % |
180 |
|
Weathering / Xenon Arc |
1000 h |
|
Tensile Strength after Weathering, MPa |
13.0 |
|
Elongation after Weathering, % |
185 |
|
Mildew Grade |
Grade 0 |
Recommended Extrusion Process Temperature
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Zone 5 |
Neck |
Head |
Mould |
|
Temperature |
100°C |
110°C |
125°C |
135°C |
150°C |
155°C |
160°C |
165°C |
EPC9555-FM can be processed on conventional PVC/PE extrusion equipment. Electron-beam irradiation is applied after extrusion to complete cross-linking.
Keep the melt temperature below 165°C and do not exceed 175°C during extrusion.
A low-compression screw and head are recommended, with a compression ratio of approximately 1:1–1:2.
For special naval or military shipboard cable structures, extrusion equipment or irradiation conditions, please contact our technical team for processing guidance.
Mildew-Resistant Military Marine Cable Material Comparison
|
Property |
EPC9555-FM |
Standard Marine LSZH |
PVC Cable Compound |
|
Material Route |
Irradiation Cross-Linked HFFR Polyolefin |
Depends on Marine Grade |
Thermoplastic PVC |
|
Military Marine Positioning |
GJB 1916-94 Sheathing Application |
Depends on Grade / Standard |
Depends on Cable Design |
|
Mildew Resistance |
GJB 150.10A • Grade 0 |
Depends on Grade |
Depends on Formulation |
|
Oil Resistance |
ASTM No. 2 Oil Immersion Data |
Depends on Grade |
Depends on Grade |
|
Halogen Positioning |
Zero Halogen |
Depends on Grade |
Halogen-Containing Material |
|
Typical Use |
Naval / Military Shipboard Cable Sheath |
Marine Cable Applications |
General Cable Applications |
OEM & Customization
- Customized Formulations
- OEM Manufacturing

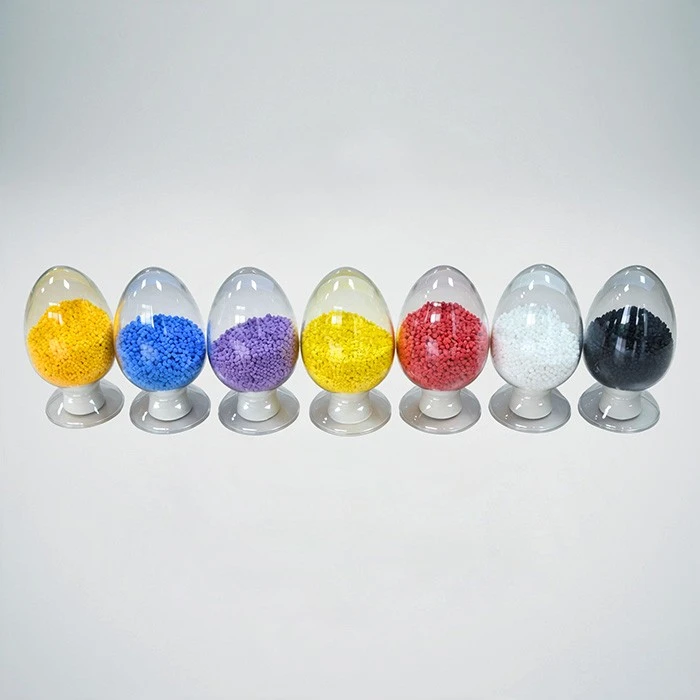

- Color Matching
- Technical Support
- Small Batch
- Fast Sampling
- Free Samples
FAQ
1. What is Mold-Resistant LSZH Marine Cable Compound EPC9555-FM?
EPC9555-FM is a mildew-resistant irradiation cross-linked LSZH flame-retardant cable compound for military shipboard and naval vessel cable applications.
2. Which military cable requirement does EPC9555-FM meet?
EPC9555-FM is designed to meet the sheathing material requirements of GJB 1916-94.
3. What mildew-resistance requirement does EPC9555-FM meet?
The material is designed to meet GJB 150.10A mildew-resistance requirements, with a reported mildew grade of 0.
4. Is EPC9555-FM oil resistant?
Yes. The technical data includes ASTM No. 2 oil immersion at 121°C × 18 h, with 9.0 MPa tensile strength and 180% elongation after immersion.
5. Is EPC9555-FM an LSZH / HFFR material?
Yes. It is a low smoke zero halogen, halogen-free flame-retardant cross-linked polyolefin material.
6. What marine applications is EPC9555-FM suitable for?
It is suitable for naval vessel, military shipboard and marine cable sheathing applications requiring oil and mildew resistance.
7. What irradiation dose is recommended?
The recommended irradiation dose is 10–12 MRad.
8. What is the recommended extrusion temperature profile?
Zone 1: 100°C; Zone 2: 110°C; Zone 3: 125°C; Zone 4: 135°C; Zone 5: 150°C; Neck: 155°C; Head: 160°C; Mould: 165°C.
9. What weathering data is available?
After 1000 h weathering exposure, the reported tensile strength is 13.0 MPa and elongation at break is 185%.
10. Can customized formulations and free samples be provided?
Yes. Customized formulations, color matching, technical support and samples can be provided according to marine cable requirements.
