Item |
Content |
|
Model |
STCE88001 |
|
Product Type |
Flame-Retardant TPE Injection Molding Compound for Electronic Products |
|
Material Type |
Thermoplastic Elastomer (TPE) Injection Molding Material |
|
Main Applications |
Electronic Products, Data-Cable Power Plugs and Compatible Molded Components |
|
Flame Performance |
UL 94 V-0 at 4.0 mm |
|
Key Characteristics |
Good Flame Retardancy, Electrical Insulation Performance and Flexible Elastomer Properties |
|
Processing |
Thermoplastic Injection Molding |
|
Customization |
Formulation / Color / Technical Support Available |
Product Overview

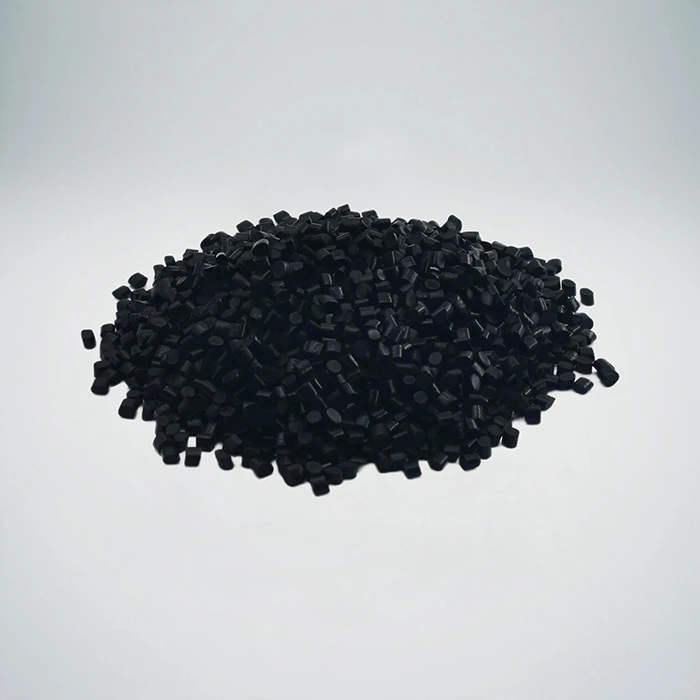

STCE88001 is a thermoplastic flame-retardant TPE injection molding compound developed for electronic products, including compatible data-cable power plugs and similar molded components. According to the supplied product catalogue, it provides good flame retardancy and electrical insulation performance, and the finished material can achieve a UL 94 V-0 flammability rating at 4.0 mm.
As a flame-retardant TPE injection molding material for electronic components and cable plug applications, STCE88001 combines a melt index of 15 g/10 min with 380% elongation at break and Shore A 80 hardness. It is designed for thermoplastic injection molding where flame resistance, electrical insulation and flexible elastomer performance are required.
Key Features
- Flame-Retardant TPE Injection Molding Compound
- Designed for Electronic Products & Data-Cable Power Plugs
- Good Electrical Insulation Performance
- UL 94 V-0 at 4.0 mm
- Suitable for Thermoplastic Injection Molding
- Elongation at Break: 380%
- Shore A Hardness: 80
Technical Data Sheet
|
Test Item |
STCE88001 |
Test Method |
|
Density, g/cm³ |
1.05 |
ASTM D792 |
|
Melt Index, g/10min |
15 |
ASTM D1238 |
|
Tensile Strength, MPa |
8.3 |
ASTM D412 |
|
Elongation at Break, % |
380 |
ASTM D412 |
|
Hardness, Shore A |
80 |
ASTM D2240 |
|
Flammability (4.0 mm) |
V-0 |
UL 94 |
Recommended Injection Molding Process Temperature
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Nozzle |
|
Temperature |
170±10°C |
180±10°C |
190±10°C |
200±10°C |
200±10°C |
STCE88001 is a thermoplastic TPE material intended for injection molding. The recommended barrel and nozzle temperature profile from the supplied product catalogue is shown below.
The actual processing temperature should be adjusted according to the molding conditions, using a flat product surface and freedom from shrinkage as the reference.
For special molds, part structures or processing conditions, please contact our technical team for processing guidance.
Applications
|
Application |
Material Role |
Application Requirements |
Suitability |
|
Data-Cable Power Plug |
Injection-Molded TPE |
Flame retardancy, electrical insulation and molding performance |
Recommended |
|
Electronic Product Component |
Injection-Molded TPE |
Flexible elastomer properties and electrical insulation |
Recommended |
|
Cable Connector / Plug Component |
TPE Overmolding Material |
Flame resistance, flexibility and stable molding |
Application-dependent |
|
Flexible Molded Electrical Part |
TPE Injection Material |
Elasticity and flame-retardant performance |
Application-dependent |
|
Custom Molded Component |
Customized TPE Material |
Formulation, color and processing matching |
Available |
OEM & Customization
- Customized Formulations
- OEM Manufacturing
- Color Matching
- Technical Support
- Small Batch
- Fast Sampling
- Free Samples
FAQ
1. What is Flame-Retardant TPE Electronics Molding Compound-STCE88001?
STCE88001 is a thermoplastic flame-retardant TPE injection molding compound developed for electronic products.
2. What applications is STCE88001 designed for?
The supplied catalogue states that it can be used for data-cable power plugs and other compatible electronic products.
3. What flame-retardant rating does STCE88001 provide?
The supplied technical data lists UL 94 V-0 at a specimen thickness of 4.0 mm.
4. Does STCE88001 provide electrical insulation performance?
Yes. Good electrical insulation is one of the key characteristics stated in the supplied product catalogue.
5. What are the main mechanical properties?
Typical values include 8.3 MPa tensile strength, 380% elongation at break and Shore A hardness of 80.
6. What is the density of STCE88001?
The typical density is 1.05 g/cm³ according to ASTM D792.
7. What is the melt index of STCE88001?
The typical melt index is 15 g/10 min according to ASTM D1238.
8. Is STCE88001 intended for extrusion or injection molding?
STCE88001 belongs to the thermoplastic TPE injection-molding material series and is intended for injection molding.
9. What is the recommended processing temperature?
Zone 1: 170±10°C; Zone 2: 180±10°C; Zone 3: 190±10°C; Zone 4: 200±10°C; Nozzle: 200±10°C.
10. Can the formulation or color be customized?
Yes. Formulation matching, color matching, technical support and sample evaluation can be provided according to the customer's molded-part and processing requirements.
