Item |
Content |
|
Model |
STCE48001 |
|
Product Type |
TPE Injection Molding Compound for Sealing Rings & Plugs |
|
Material Type |
Thermoplastic Elastomer (TPE) Injection Molding Material |
|
Main Applications |
Sealing Rings, Plugs and Compatible Molded Products |
|
Flame Performance |
No flammability rating specified in the supplied catalogue |
|
Key Characteristics |
Excellent Processability, Flexible Elastomer Performance |
|
Processing |
Thermoplastic Injection Molding |
|
Customization |
Formulation / Color / Technical Support Available |
Product Overview

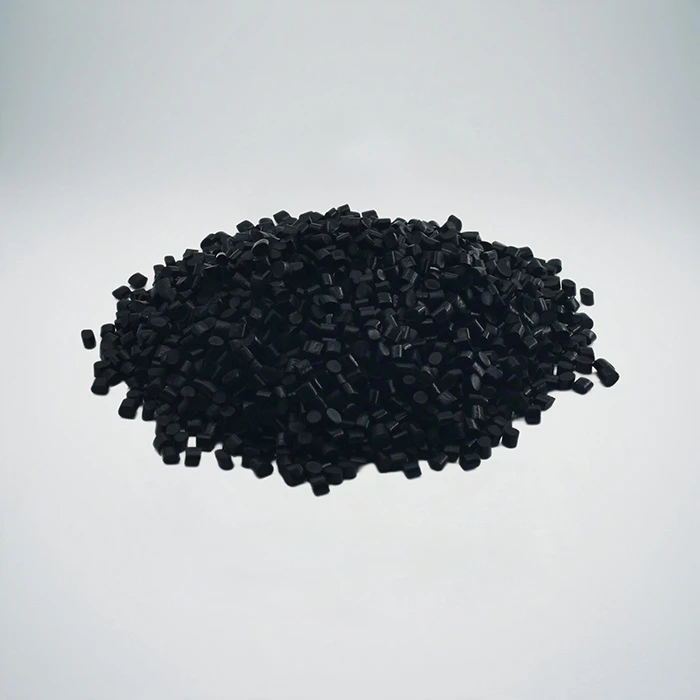

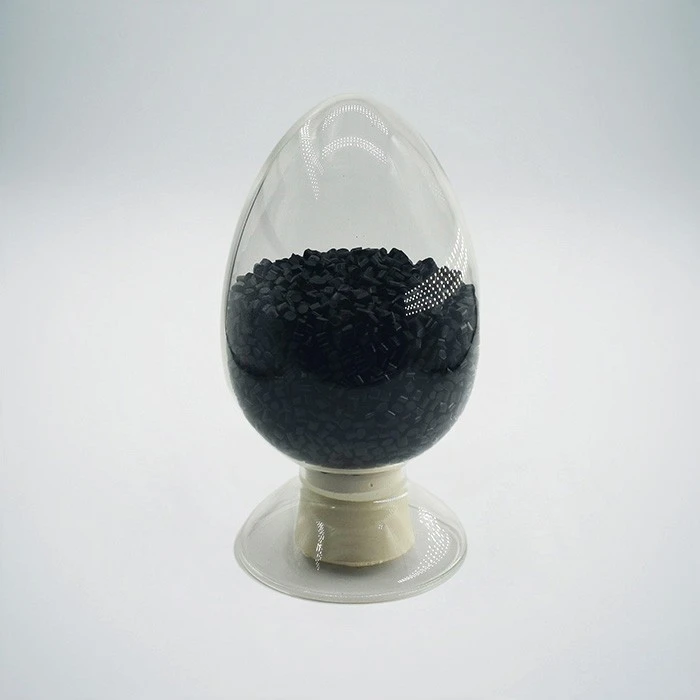

STCE48001 is a thermoplastic TPE injection molding compound developed for sealing rings, plugs and compatible molded products. According to the supplied product catalogue, the material provides excellent processability and is suitable for thermoplastic injection molding applications requiring flexible elastomer performance.
As a TPE injection molding material for sealing components and plug products, STCE48001 combines a melt index of 18 g/10 min, 9.5 MPa tensile strength, 450% elongation at break and Shore A 80 hardness. Its processing characteristics make it suitable for efficient molding of compatible sealing and plug components.
Key Features
- TPE Injection Molding Compound
- Designed for Sealing Rings & Plug Products
- Excellent Processability
- Suitable for Thermoplastic Injection Molding
- Tensile Strength: 9.5 MPa
- Elongation at Break: 450%
- Shore A Hardness: 80
Technical Data Sheet
|
Test Item |
STCE48001 |
Test Method |
|
Density, g/cm³ |
1.00 |
ASTM D792 |
|
Melt Index, g/10min |
18 |
ASTM D1238 |
|
Tensile Strength, MPa |
9.5 |
ASTM D412 |
|
Elongation at Break, % |
450 |
ASTM D412 |
|
Hardness, Shore A |
80 |
ASTM D2240 |
Recommended Injection Molding Process Temperature
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Nozzle |
|
Temperature |
170±10°C |
180±10°C |
190±10°C |
200±10°C |
200±10°C |
STCE48001 is intended for thermoplastic injection molding. The recommended barrel and nozzle temperature profile from the supplied product catalogue is shown below.
The actual processing temperature should be adjusted according to molding conditions, using a flat product surface and freedom from shrinkage as the reference.
For special molds, part structures or processing conditions, please contact our technical team for processing guidance.
Applications
|
Application |
Material Role |
Application Requirements |
Suitability |
|
Sealing Ring |
Injection-Molded TPE |
Processability, elasticity and molded-part consistency |
Recommended |
|
Plug Product |
Injection-Molded TPE |
Good molding performance and flexible elastomer properties |
Recommended |
|
Flexible Sealing Component |
TPE Injection Material |
Elasticity and stable molding |
Application-dependent |
|
General Molded TPE Part |
TPE Injection Material |
Efficient thermoplastic processing |
Application-dependent |
|
Custom Molded Component |
Customized TPE Material |
Formulation, color and processing matching |
Available |
OEM & Customization
- Customized Formulations
- OEM Manufacturing
- Color Matching
- Technical Support
- Small Batch
- Fast Sampling
- Free Samples
FAQ
1. What is TPE Sealing Ring and Plug Compound-STCE48001?
STCE48001 is a thermoplastic TPE injection molding compound developed for sealing rings, plugs and compatible molded products.
2. What applications is STCE48001 designed for?
According to the supplied product catalogue, it is intended for sealing-ring and plug products.
3. What is the key characteristic of STCE48001?
The supplied catalogue specifically highlights its excellent processability.
4. Is STCE48001 a flame-retardant grade?
The supplied catalogue does not specify a flammability rating for STCE48001, so no flame-retardant classification is claimed on this page.
5. What are the main mechanical properties?
Typical values include 9.5 MPa tensile strength, 450% elongation at break and Shore A hardness of 80.
6. What is the density of STCE48001?
The typical density is 1.00 g/cm³ according to ASTM D792.
7. What is the melt index of STCE48001?
The typical melt index is 18 g/10 min according to ASTM D1238.
8. Is STCE48001 intended for extrusion or injection molding?
STCE48001 belongs to the thermoplastic TPE injection-molding material series and is intended for injection molding.
9. What is the recommended processing temperature?
Zone 1: 170±10°C; Zone 2: 180±10°C; Zone 3: 190±10°C; Zone 4: 200±10°C; Nozzle: 200±10°C.
10. Can the formulation or color be customized?
Yes. Formulation matching, color matching, technical support and sample evaluation can be provided according to the customer's molded-part and processing requirements.
