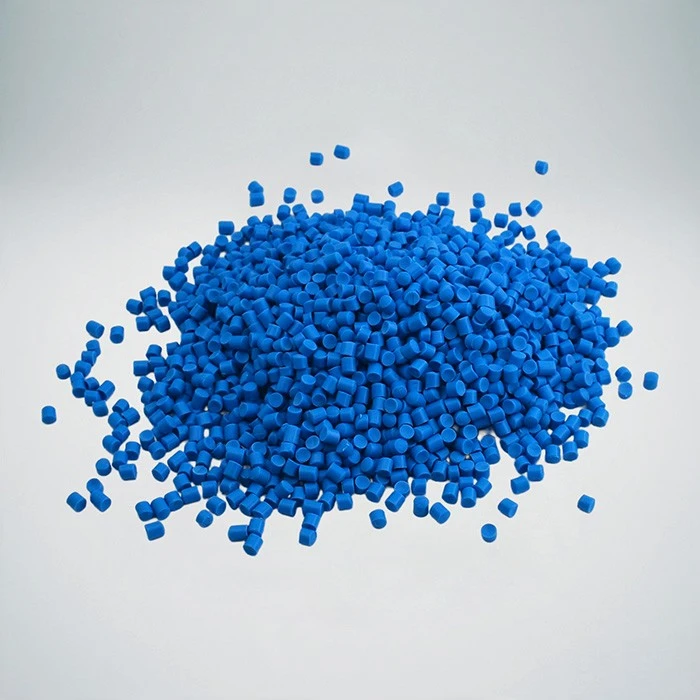

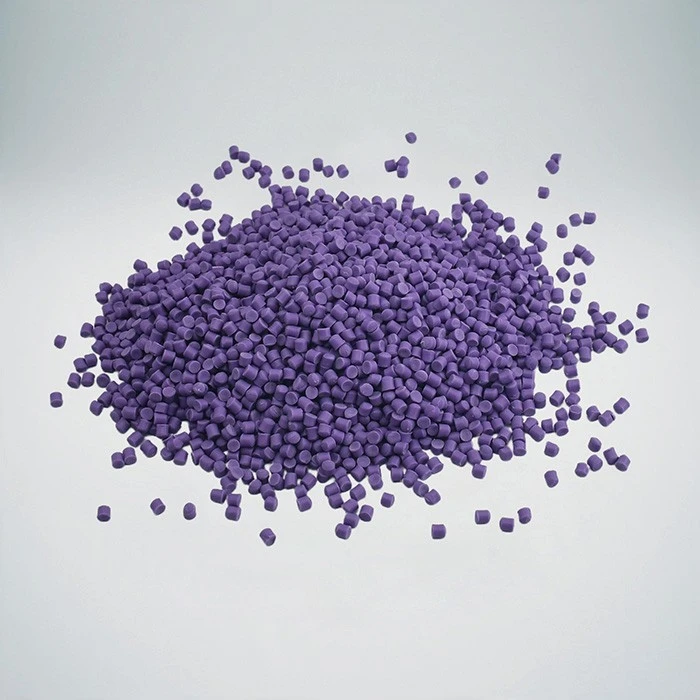

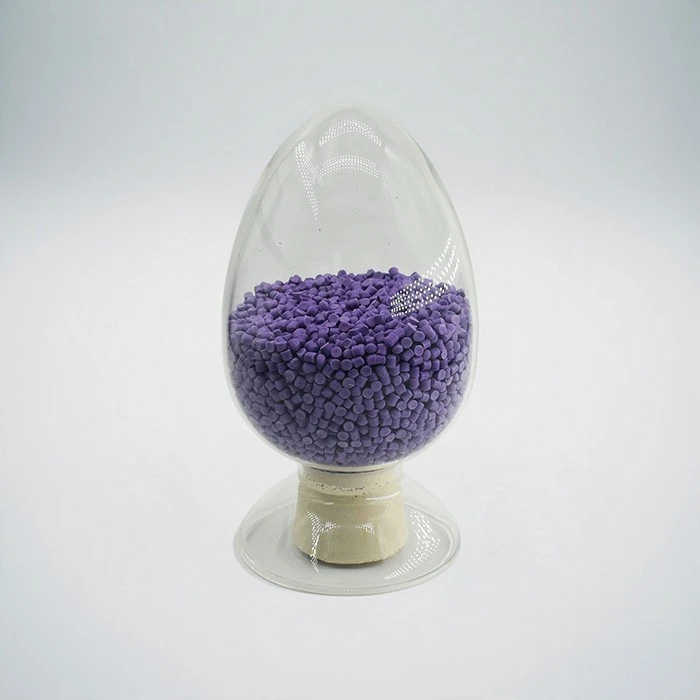

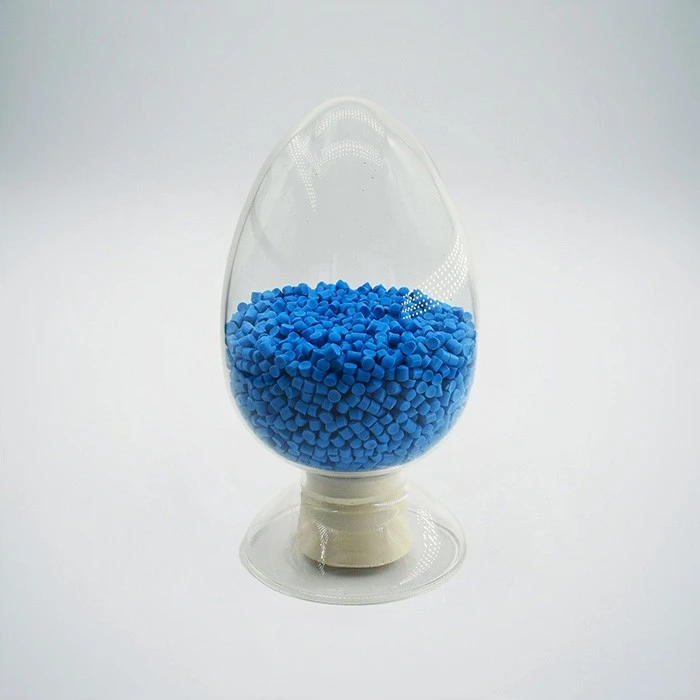

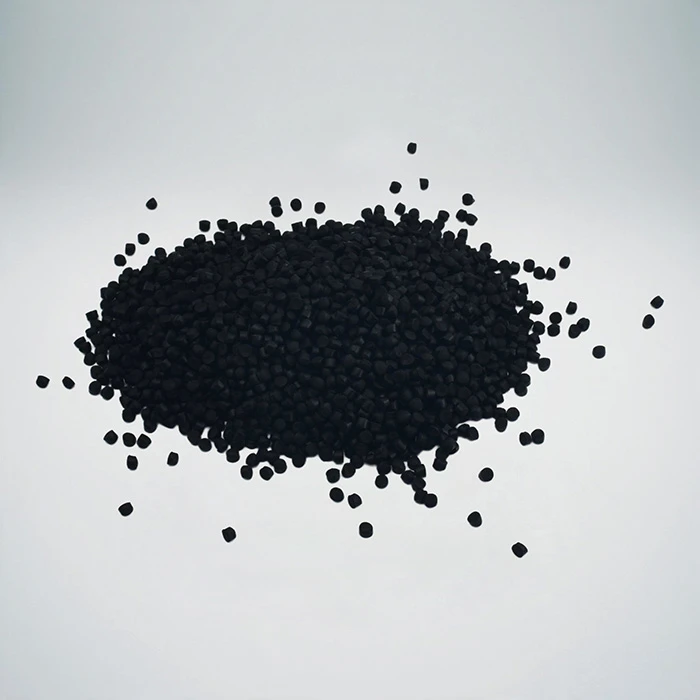

Model	EPC6901
Product Type	Thermoplastic LSZH Cable Insulation Compound
Material Type	Thermoplastic LSZH / HFFR
Primary Function	General-purpose cable insulation
Key Positioning	Excellent insulation • Low water absorption • Flame retardancy • Self-extinguishing
Typical Mechanical Data	13.2 MPa tensile strength • 230% elongation
Typical Fire / Halogen Data	OI 34% • 0 ppm halogen
Typical Electrical Data	Volume resistivity 3 × 10¹² Ω·m

Product Overview

EPC6901 is a Thermoplastic LSZH Cable Insulation Compound developed for low-smoke zero-halogen cable insulation applications. The supplied product information highlights excellent insulation performance, low water absorption, good processability, flame retardancy and self-extinguishing behavior.

As a Thermoplastic LSZH Cable Insulation Compound, EPC6901 provides a practical thermoplastic route for cable manufacturers that need LSZH / HFFR insulation with stable mechanical, electrical and processing performance. It can be evaluated across general cable-insulation constructions according to the finished-cable design and required standard.

Why Choose EPC6901?

1. General-Purpose LSZH Insulation Platform

A thermoplastic LSZH / HFFR insulation grade intended for broad cable-insulation use rather than one narrow application.

2. Excellent Electrical Insulation

The supplied technical data lists a typical volume resistivity of 3 × 10¹² Ω·m, supporting its positioning as an electrical insulation material.

3. Low Water Absorption Positioning

Low water absorption is one of the key application advantages specifically highlighted for EPC6901 in the supplied product catalogue.

4. Balanced Mechanical Properties

Typical tensile strength is 13.2 MPa and elongation at break is 230%, providing a practical balance for cable insulation extrusion.

5. LSZH / HFFR Fire-Safety Profile

Typical oxygen index is 34% and halogen content is 0 ppm in the supplied data, together with flame-retardant and self-extinguishing positioning.

6. Reliable Thermoplastic Processing

EPC6901 can be processed on conventional PVC/PE extrusion equipment without a post-extrusion irradiation step.

Typical Applications

General LSZH cable insulation
Low-smoke zero-halogen wire insulation
Power and electrical cable insulation constructions
Control and industrial cable insulation
Instrumentation cable insulation
Other thermoplastic HFFR insulation applications
Customized cable-insulation constructions subject to finished-cable validation

Recommended Extrusion Process Temperature

Zone	Zone 1	Zone 2	Zone 3	Zone 4	Zone 5	Neck	Head	Mould
Temperature	100°C	110°C	125°C	135°C	150°C	155°C	160°C	165°C

Recommended Extrusion Conditions

EPC6901 can be processed on conventional PVC/PE cable extrusion equipment.
Recommended temperature profile: 100°C / 110°C / 125°C / 135°C / 150°C / 155°C / 160°C / 165°C.
Keep melt temperature below approximately 165°C and do not exceed 175°C according to the supplied processing guidance.
A low-compression screw and head are recommended; compression ratio approximately 1:1.2.
Adjust line speed, die design and cooling according to conductor size, insulation thickness and surface requirements.

Technical Data Sheet

Test Item	Typical Value	Test Method
Density	1.46 g/cm³	ISO 1183-1
Melt Index	7.5 g/10 min	ISO 1133 (b)
Tensile Strength	13.2 MPa	IEC 60811-1-1
Elongation at Break	230%	IEC 60811-1-1
Aging Test	110°C × 168 h	IEC 60811-1-2
Tensile Strength after Aging	14.7 MPa	IEC 60811-1-2
Elongation after Aging	219%	IEC 60811-1-2
Oxygen Index	34%	ISO 4589-2
Smoke Density - Flaming	54	ASTM E-662
Smoke Density - Non-Flaming	201	ASTM E-662
Toxicity Index	1	NES 713
Hardness	Shore A 96	ASTM D2240
High-Temperature Pressure Test	90°C × 4 h	IEC 60811-3-1
Thermal Deformation	28%	IEC 60811-3-1
Low-Temperature Impact @ -25°C	Pass	IEC 60811-1-4
Thermal Shock @ 150°C	Pass	IEC 60811-3-1
Halogen Content	0 ppm	IEC 60754
pH	6.2	IEC 60754
Conductivity	0.8 μS/mm	IEC 60754
Volume Resistivity	3 × 10¹² Ω·m	IEC 60093

Typical General-Purpose Cable Scenarios

The same EPC6901 insulation material can be evaluated across multiple general cable types when the project requires thermoplastic LSZH / HFFR insulation rather than a specialized application grade.

Power & Electrical Cable Insulation

EPC6901 can be evaluated for general power and electrical cable insulation constructions requiring low-smoke zero-halogen thermoplastic insulation.

Control, Industrial & Instrumentation Cable Insulation

For control, industrial and instrumentation cable constructions, EPC6901 provides a general LSZH insulation route with balanced electrical, mechanical and processing properties.

Other General LSZH Insulation Applications

EPC6901 can also be evaluated for other general thermoplastic LSZH insulation constructions when the cable design and finished-cable tests confirm suitability.

Free Sample & Technical Support

For faster material selection and sample evaluation, please provide:

Cable type and end-use application
Required cable layer: insulation
Conductor size and insulation thickness
Applicable finished-cable standard or customer specification
Required LSZH / flame-retardant performance
Operating and minimum ambient temperature
Electrical insulation requirements
Extrusion equipment and line speed
Required color
Trial quantity and estimated annual volume

FAQ

Q: What is EPC6901?

A: EPC6901 is a general-purpose thermoplastic LSZH / HFFR cable insulation compound with excellent insulation, low water absorption, flame retardancy and good processability.

Q: What is the main function of EPC6901?

A: This page positions EPC6901 as a general-purpose cable insulation material rather than an outer-jacket grade.

Q: What are the main advantages of EPC6901?

A: The supplied catalogue highlights excellent insulation, low water absorption, good processability, flame retardancy and self-extinguishing behavior.

Q: Is EPC6901 halogen-free?

A: Yes. Typical halogen content in the supplied technical data is 0 ppm.

Q: What is the typical oxygen index?

A: The supplied product data lists a typical oxygen index of 34%.

Q: What is the typical volume resistivity?

A: The supplied technical data lists a typical volume resistivity of 3 × 10¹² Ω·m.

Q: Does EPC6901 require irradiation?

A: No. EPC6901 is a thermoplastic extrusion grade and does not require post-extrusion irradiation.

Q: What is the recommended extrusion temperature profile?

A: The supplied catalogue recommends approximately 100°C / 110°C / 125°C / 135°C / 150°C / 155°C / 160°C / 165°C across the extrusion zones.

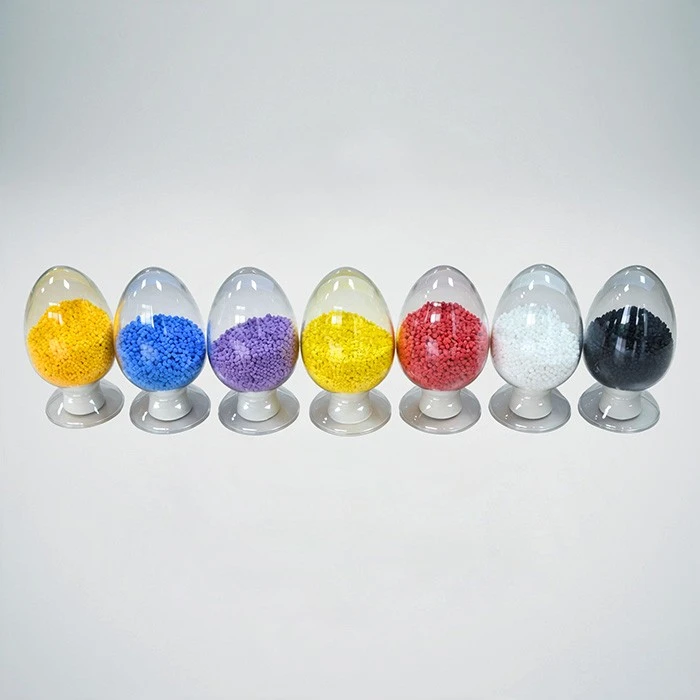

Q: Can EPC6901 be supplied in different colors?

A: Yes. Color matching can be discussed according to the cable manufacturer's requirements and final cable construction.
