Item	EPC9054
Product Type	105°C irradiation cross-linked high flame-retardant LSZH cable compound
Primary Position	High flame-retardant 105°C cable material
Application Route	Wires designed to meet 105°C Class A bunched flame test requirements
Cross-Linking	Electron-beam / irradiation cross-linking
Recommended Dose	10–12 MRad
Oxygen Index	38%
Mechanical	12.7 MPa tensile strength; 200% elongation
Key Advantages	High flame retardancy • LSZH • Cross-linked heat resistance • Low smoke • Zero halogen

Product Overview

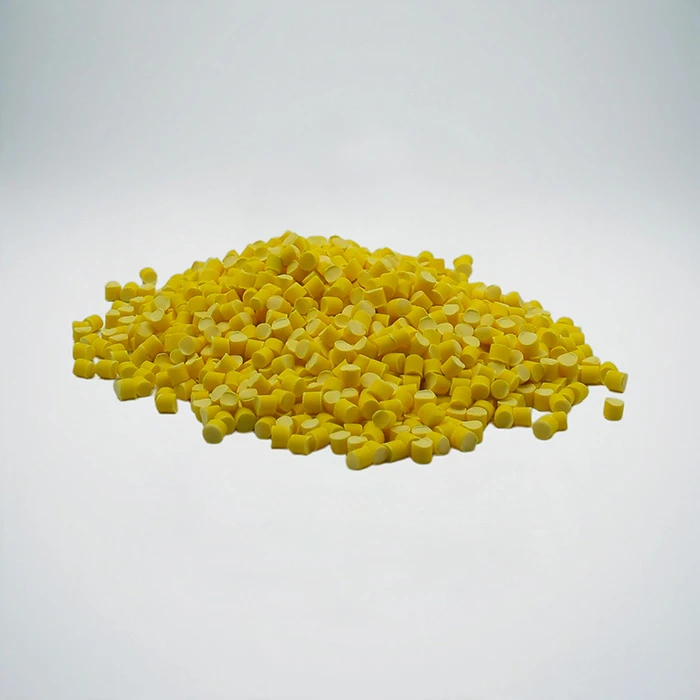

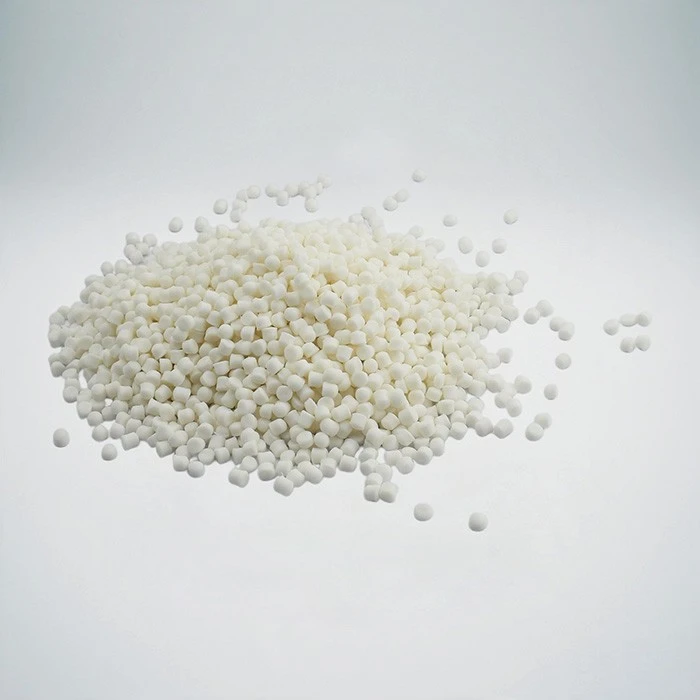

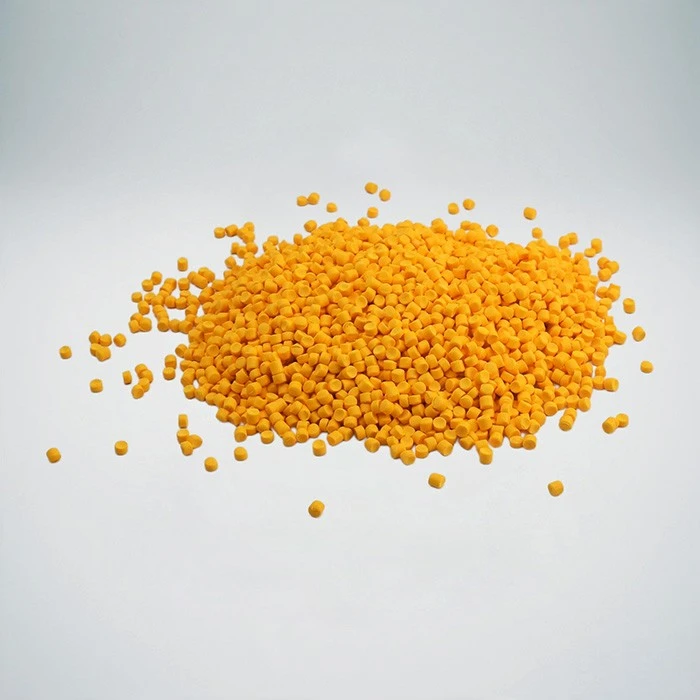

EPC9054 is a 105°C irradiation cross-linked low smoke zero halogen high flame-retardant cable compound developed for demanding wire and cable applications. It can be used to manufacture wires designed to meet 105°C Class A bunched flame test requirements.

Its role within the 105°C irradiation-crosslinked LSZH family is very specific: EPC9051 is the standard 105°C route, while EPC9054 is selected when higher flame-retardant performance and Class A bunched-flame capability become the key project requirement. A recommended irradiation dose of 10–12 MRad is used as the starting process window.

Why Choose EPC9054?

1. Class A Bunched Flame Application Route

Developed for wire constructions requiring demanding Class A bunched flame performance at the 105°C level.

2. High Flame Retardancy

A typical oxygen index of 38% supports EPC9054's high flame-retardant positioning.

3. 105°C Cross-Linked Cable Performance

Irradiation cross-linking provides the heat resistance and dimensional stability required for higher-temperature cable applications.

4. Low Smoke Zero Halogen

Combines flame-retardant performance with low-smoke and zero-halogen material characteristics.

5. Reliable Mechanical Balance

Typical tensile strength is 12.7 MPa with 200% elongation at break before aging.

6. Production-Oriented Processing

Extruded on conventional cable equipment before irradiation cross-linking, supporting practical industrial manufacturing.

Typical Applications

105°C high flame-retardant wires
Building and infrastructure cable constructions
Industrial wires requiring Class A bunched flame performance
Low smoke zero halogen cable systems with enhanced flame-retardant requirements
Irradiation cross-linked wire and cable applications where 105°C heat resistance is required

Core Selection Logic

Customer Requirement	Recommended Route
Standard 105°C irradiation-crosslinked LSZH	EPC9051
105°C + Class A bunched flame / higher flame retardancy	EPC9054
125°C irradiation-crosslinked LSZH	EPC9251
150°C irradiation-crosslinked LSZH	EPC9501

Technical Data Sheet

Test Item	Typical Value
Density	1.55 g/cm³
Melt Index	1.9 g/10 min
Tensile Strength	12.7 MPa
Elongation at Break	200%
Aging Test	136°C × 168 h
Tensile Strength after Aging	14.7 MPa
Elongation after Aging	168%
Oxygen Index	38%
Smoke Density - Flaming	45
Smoke Density - Non-Flaming	166
Toxicity Index	1
Hardness	Shore A 96
Low-Temperature Bending @ -25°C	Pass
Thermal Shock @ 150°C	Pass
Halogen Content	0 ppm
pH	≥ 6.2
Conductivity	≤ 0.8 μS/mm
Volume Resistivity	1.1 × 10¹² Ω·m
Hot Set @ 200°C × 15 min	30%
Permanent Deformation	5%

Performance Interpretation

Performance Area	EPC9054 Positioning
Temperature class	105°C irradiation-crosslinked route
Flame performance	High flame retardancy; Class A bunched-flame application route
Oxygen index	38%
Smoke / halogen	Low smoke + zero halogen
Mechanical	12.7 MPa / 200%
Cross-link verification	Hot set 30%; permanent deformation 5%
Low temperature	-25°C bending pass
Thermal shock	150°C pass

Recommended Extrusion & Irradiation Conditions

Zone	Zone 1	Zone 2	Zone 3	Zone 4	Zone 5	Neck	Head	Mould
Temperature	100°C	110°C	125°C	135°C	150°C	155°C	160°C	165°C

Processing Guidelines

EPC9054 can be processed on conventional PVC/PE cable extrusion equipment before irradiation.
After extrusion, irradiation cross-linking is required. Recommended irradiation dose: 10–12 MRad.
Keep melt temperature below approximately 165°C and do not exceed 175°C during extrusion.
A low-compression-ratio screw and head are recommended; approximately 1:1 to 1:2 is a practical starting range.
Optimize extrusion temperature, line speed, cooling and irradiation dose according to conductor size, insulation/sheath thickness and actual equipment.
Cross-linking level and final flame performance should be confirmed through production trials and finished-wire testing.

Why Irradiation Cross-Linking Matters

Before irradiation, EPC9054 is extruded as a thermoplastic compound. Electron-beam irradiation creates a cross-linked polymer network, improving heat resistance and dimensional stability. For this reason, extrusion quality and irradiation dose must be treated as one integrated manufacturing process rather than as independent steps.

EPC9054 vs. EPC9051

Selection Point	EPC9054	EPC9051
Temperature Route	105°C	105°C
Primary Position	High flame-retardant / Class A bunched-flame route	Standard 105°C irradiation-crosslinked LSZH route
Main Selection Driver	Higher flame-retardant requirement	General 105°C LSZH requirement
Recommended Irradiation	10–12 MRad	10–12 MRad
Choose When	Class A bunched flame performance is required	Standard 105°C performance is the main requirement

EPC9054 vs. Higher-Temperature Grades

Grade	Core Route	Main Selection Driver
EPC9054	105°C high flame-retardant	Class A bunched flame requirement
EPC9251	125°C irradiation-crosslinked LSZH	Higher temperature requirement
EPC9501	150°C irradiation-crosslinked LSZH	High-temperature requirement

Important Selection Note

Do not describe EPC9054 simply as a 'higher grade' than EPC9051, EPC9251 or EPC9501. EPC9054 is differentiated mainly by its high flame-retardant / Class A bunched-flame application route at 105°C. Final compliance depends on the complete wire or cable construction, extrusion, irradiation conditions and finished-product testing.

Free Sample & Technical Support

For faster grade selection and RFQ evaluation, please provide:

Wire / cable type and end-use application
Required temperature class
Required Class A bunched flame test or other flame-performance target
Applicable cable standard and test method
Conductor size and cable construction
Insulation / sheath thickness
Required LSZH / halogen-free performance
Extrusion equipment and line speed
Irradiation equipment and target dose
Color, trial quantity and estimated annual volume

FAQ

Q: What is EPC9054?

A: A 105°C irradiation cross-linked LSZH / HFFR high flame-retardant cable compound for demanding wire and cable applications.

Q: What is the key application of EPC9054?

A: It can be used to manufacture wires designed to meet 105°C Class A bunched flame test requirements.

Q: How is EPC9054 different from EPC9051?

A: Both are 105°C irradiation-crosslinked LSZH routes. EPC9054 is positioned for higher flame retardancy and Class A bunched-flame applications, while EPC9051 is the standard 105°C route.

Q: What is the recommended irradiation dose?

A: The recommended starting dose is 10–12 MRad; final settings should be validated on the customer's actual cable construction and irradiation line.

Q: What is the oxygen index?

A: The current technical data lists a typical oxygen index of 38%.

Q: What are the typical mechanical properties?

A: Typical tensile strength is 12.7 MPa and elongation at break is 200%.

Q: Does EPC9054 require irradiation after extrusion?

A: Yes. It is designed for irradiation cross-linking after extrusion.

Q: Can it be processed on conventional cable extrusion equipment?

A: Yes. Conventional PVC/PE extrusion equipment can be used with suitable screw configuration and temperature control.

Q: Is EPC9054 a 125°C or 150°C material?

A: No. EPC9054 is positioned as a 105°C high flame-retardant grade. EPC9251 and EPC9501 are separate 125°C and 150°C routes.
